Honeywell has combined tried and tested product features of the Elster and Instromet rotary meter product lines with new developments into a single meter.

Rotary-All-By-One “RABO,” simple, all-in-one!

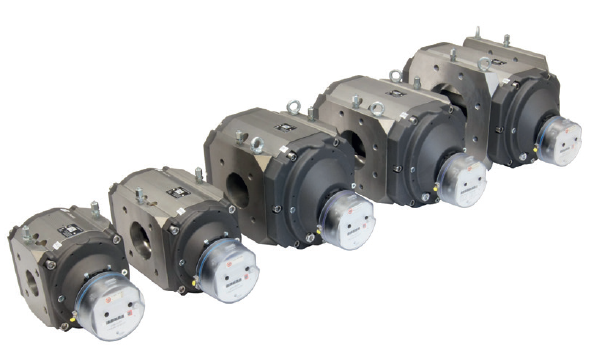

5 meters sizes with capacities ranging from 3,500 up to 23,000 CFH

*2-3° 4° and 6° ANSI Class 125/160 flanged connections

• High rangeability across the flow range
• Low-pressure drop
• Differential pressure test ports are standard
• Two 1/4° NPT taps on inlet
• Non lubricated and non-resettable index
• Endview, rotatable index
• Heavy duty, compact design
• High impact resistant ultraviolet stabilized index cover
• Anodized extruded aluminum body and impellersAnodized forged aluminum case covers
• Permanently lubricated bearings
